Corvex 152mm Modular Extendable Diamond Core Bit – 1 1/4" UNC Deep Coring System (1m / 1.5m / 2m)

152 mm Modular Extendable Diamond Core Bit

The Corvex Modular Extendable Diamond Core Bit is designed for deep concrete coring applications where standard core bit lengths are not sufficient.

Using a modular extension system, drilling depth can be increased from 1 meter up to 2 meters, making it ideal for structural drilling, infrastructure works, and deep wall penetrations.

Built with a heavy-duty steel body and precision diamond segments, the Corvex deep coring system delivers stable drilling performance in reinforced concrete while maintaining compatibility with professional core drilling machines.

Technical Specifications

• Connection: 1-1/4″ UNC
• Core Bit Diameter: 152 mm
• System Type: Modular extendable core drilling system
• Drilling Type: Wet drilling
• Application: Reinforced concrete, concrete, structural concrete
• Machine Type: Core drilling rig (stand mounted)
• Maximum Drilling Depth: Up to 2 meters (depending on configuration)

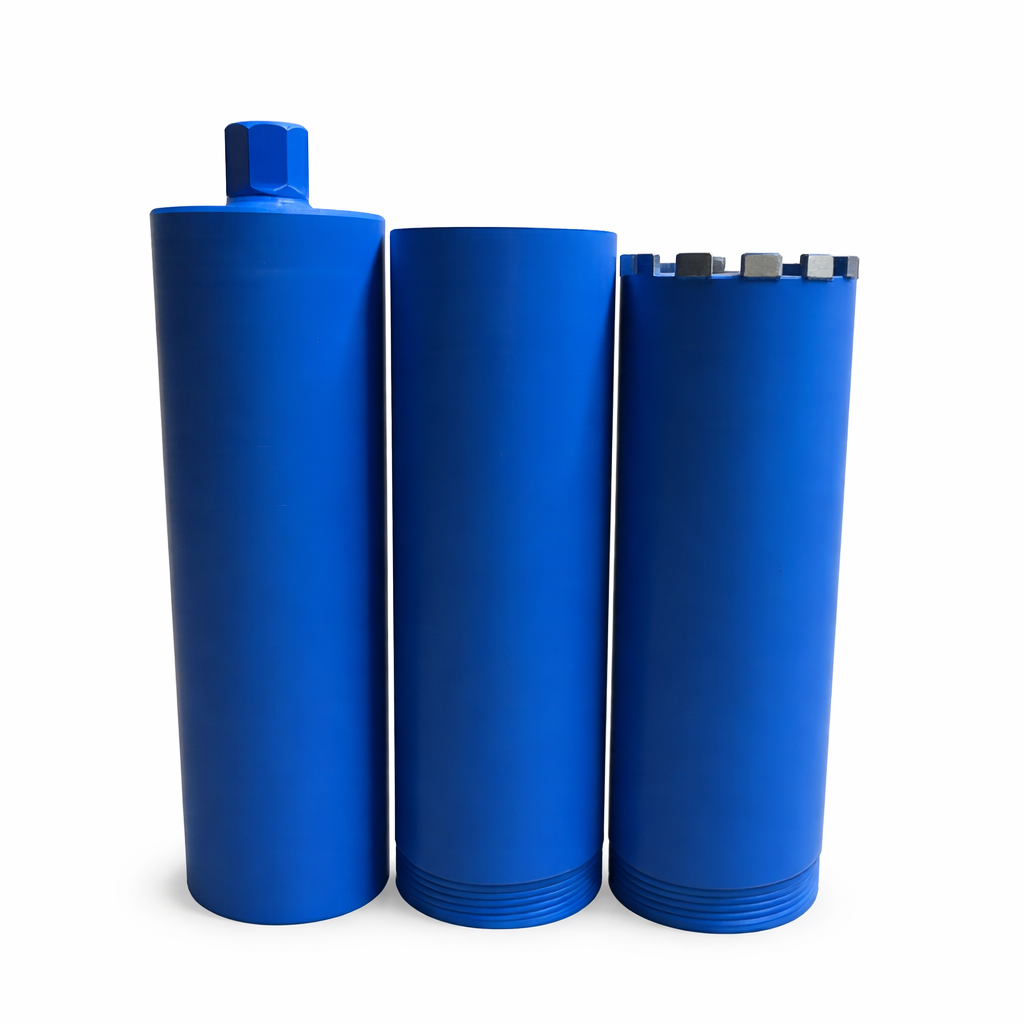

System Configuration

• 1 Meter: Cutting section + connector section
• 1.5 Meter: Cutting section + connector section + 1 extension
• 2 Meter: Cutting section + connector section + 2 extensions
