SOLGA M14 Vacuum Brazed Diamond Drill Bit - Dry Drilling in Tile, Porcelain, Glass and Stone

Fast Dry Drilling in Tile, Porcelain, Glass and Stone

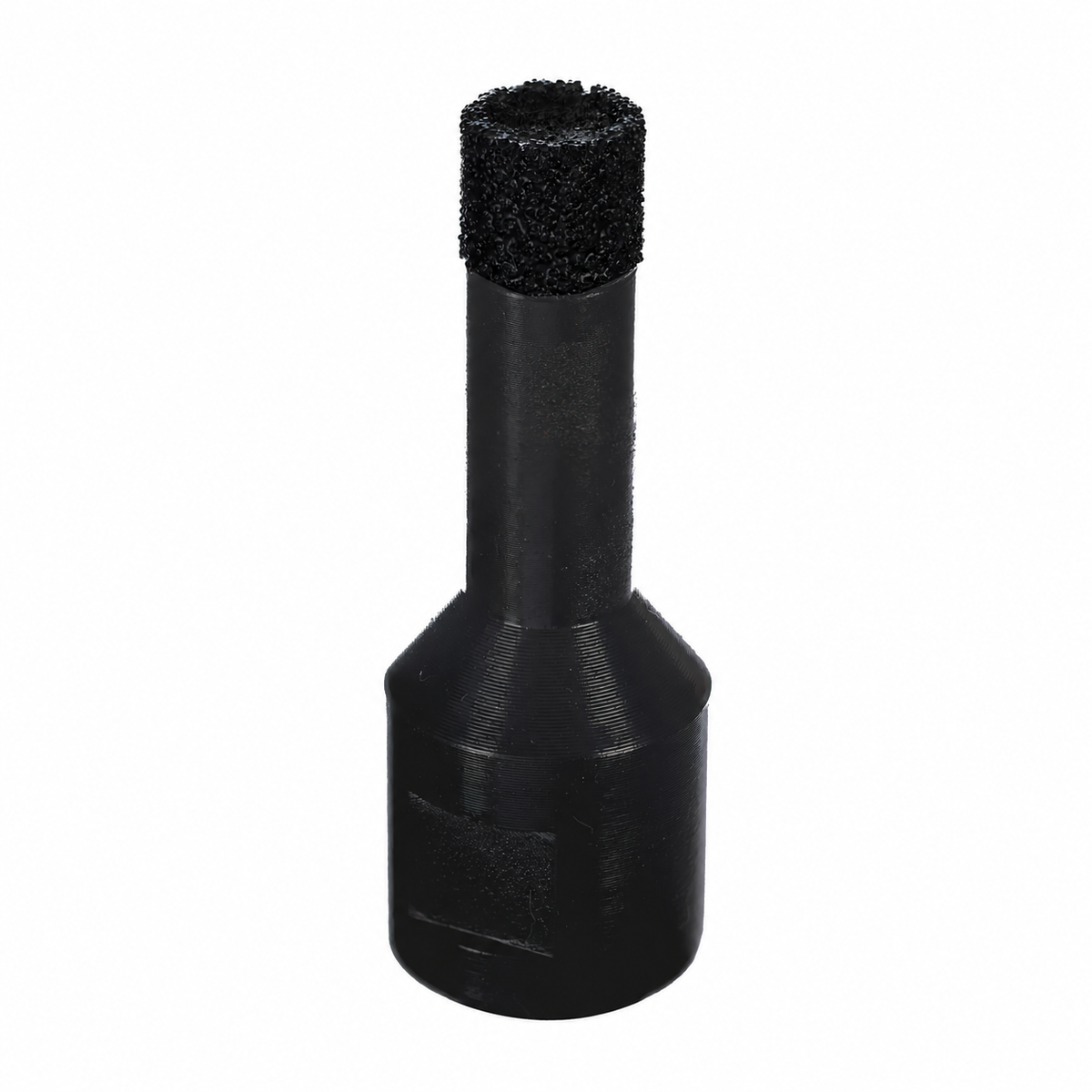

The SOLGA M14 Vacuum-Brazed Diamond Drill Bit is designed for fast, accurate dry drilling across a wide range of hard materials. Its exposed diamond coating provides efficient drilling performance without requiring a metal-bonded diamond segment.

Available in diameters from 6 mm to 50 mm, the range is suitable for creating fixing holes, pipe openings and service penetrations in tile, porcelain, glass, stone and other compatible materials. The M14 threaded connection fits compatible angle grinders and polishing machines.

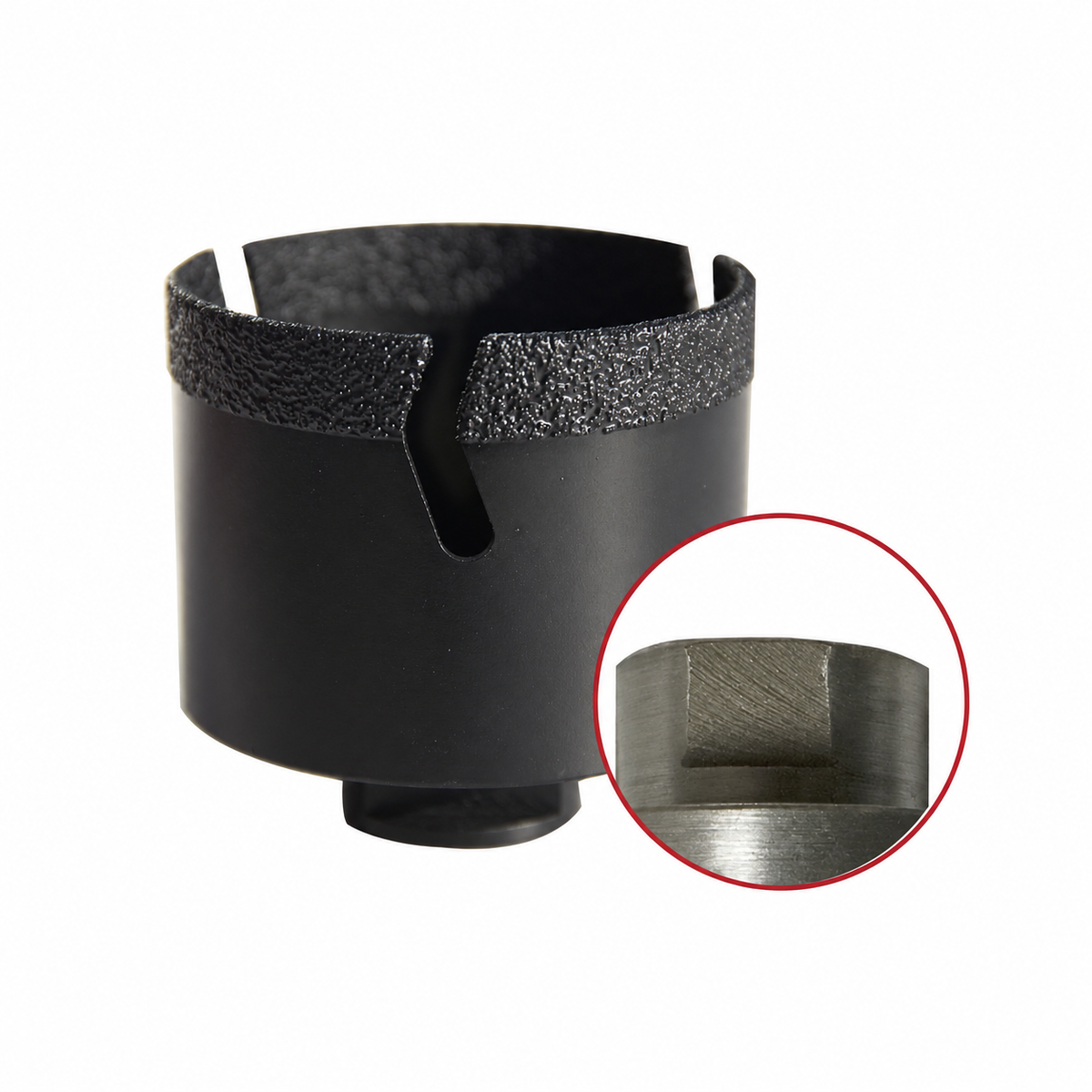

The larger 30 mm and 50 mm core-drill variants include a lateral opening that helps remove dust and drilling debris.

TECHNICAL SPECIFICATIONS

• Brand: SOLGA
• Product type: Vacuum-brazed diamond drill bit
• Connection: M14 thread
• Drilling method: Dry drilling
• Available diameters: 6, 8, 10, 30 and 50 mm
• Tool compatibility: Compatible angle grinders and polishing machines
• Construction: Vacuum-brazed diamond coating

FEATURES

• Vacuum-brazed diamond coating
• Designed for fast dry drilling
• Suitable for both stone and non-stone materials
• M14 fitting for compatible angle grinders
• Five diameters for different hole requirements
• Larger sizes feature lateral openings for debris removal
• Suitable for installers, fabricators and renovation work

APPLICATIONS

Suitable for drilling compatible:

• Ceramic tiles
• Stoneware
• Porcelain
• Ultra-compact surfaces
• Glass and fibreglass
• Artificial stone
• Granite
• Terrazzo
• Slate
• Engineered stone
• Selected masonry materials

OPERATING RECOMMENDATION

Begin drilling at an angle to establish the opening, then use a controlled oscillating movement. This helps maintain cutting contact and allows dust to escape. Do not use hammer or impact mode.

Use a sufficiently powerful compatible machine, particularly with the larger diameters.
