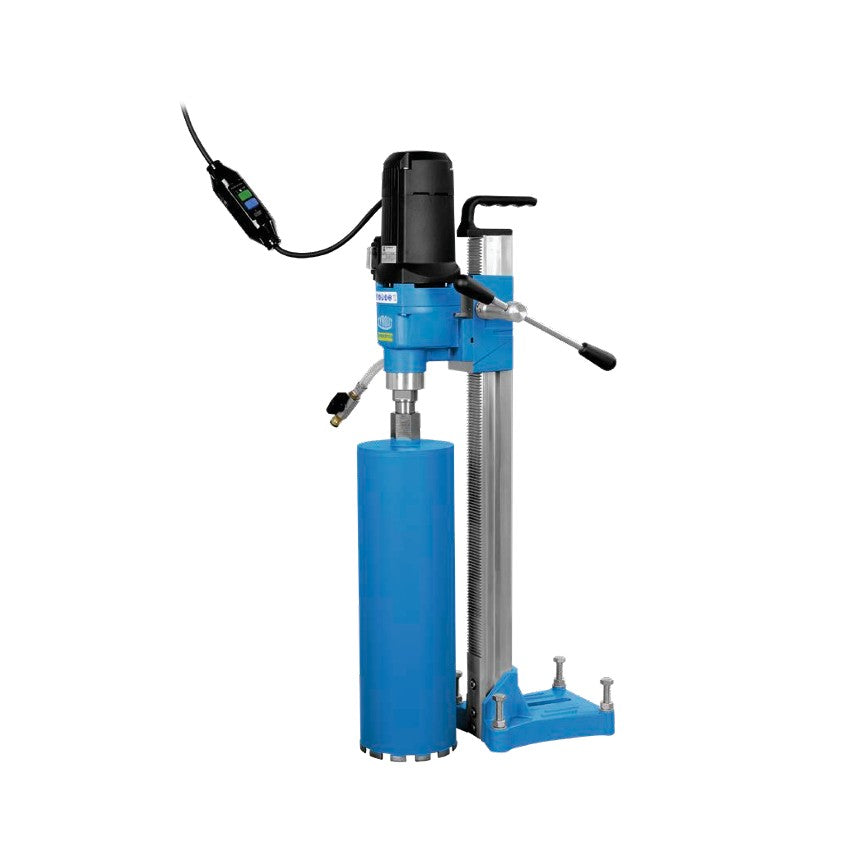

Tyrolit Core Drilling System – DRS162S/1 – 162 mm – 2.5kW

Core Drilling System – DRS162S/1 – Up to 162 mm

The Tyrolit DRS162S/1 is a compact and powerful core drilling system engineered for professional wet drilling applications in concrete and reinforced concrete.

This integrated system combines a 2.5kW high-performance motor with a precision drill rig, delivering stability, smooth feed control, and reliable drilling performance up to 162 mm diameter.

Designed for electrical, plumbing, HVAC and installation contractors, the DRS162S/1 provides excellent handling, compact footprint and consistent torque output for medium-diameter core drilling tasks.

Built with safety and durability in mind, the system features mechanical overload protection and a robust rig construction for demanding jobsite environments.

Key Features

• Complete motor + drill rig system
• Drilling capacity up to 162 mm
• 2.5kW high-performance motor
• 2-speed oil bath gearbox
• Mechanical overload clutch
• Integrated PRCD safety switch
• Stable anchor-based fixing
• Designed for wet drilling

Technical Specifications

• Model: DRS162S/1
• Item Number: 10990700
• Maximum Drilling Diameter: 162 mm
• Motor Power: 2.5kW
• Voltage: 230V
• Frequency: 50Hz
• Cooling: Air cooled
• Operation Type: Drill rig operation
• Application: Wet core drilling
• Tool Attachment: 1 1/4″ external thread
• Base Type: Anchor base (Ancho)
• Feed Mechanism: Manual feed
• Gearbox: 2-speed oil bath

Recommended Applications

• Electrical conduit drilling
• Plumbing penetrations
• HVAC installations
• Structural openings (medium diameter)
• Reinforced concrete drilling
