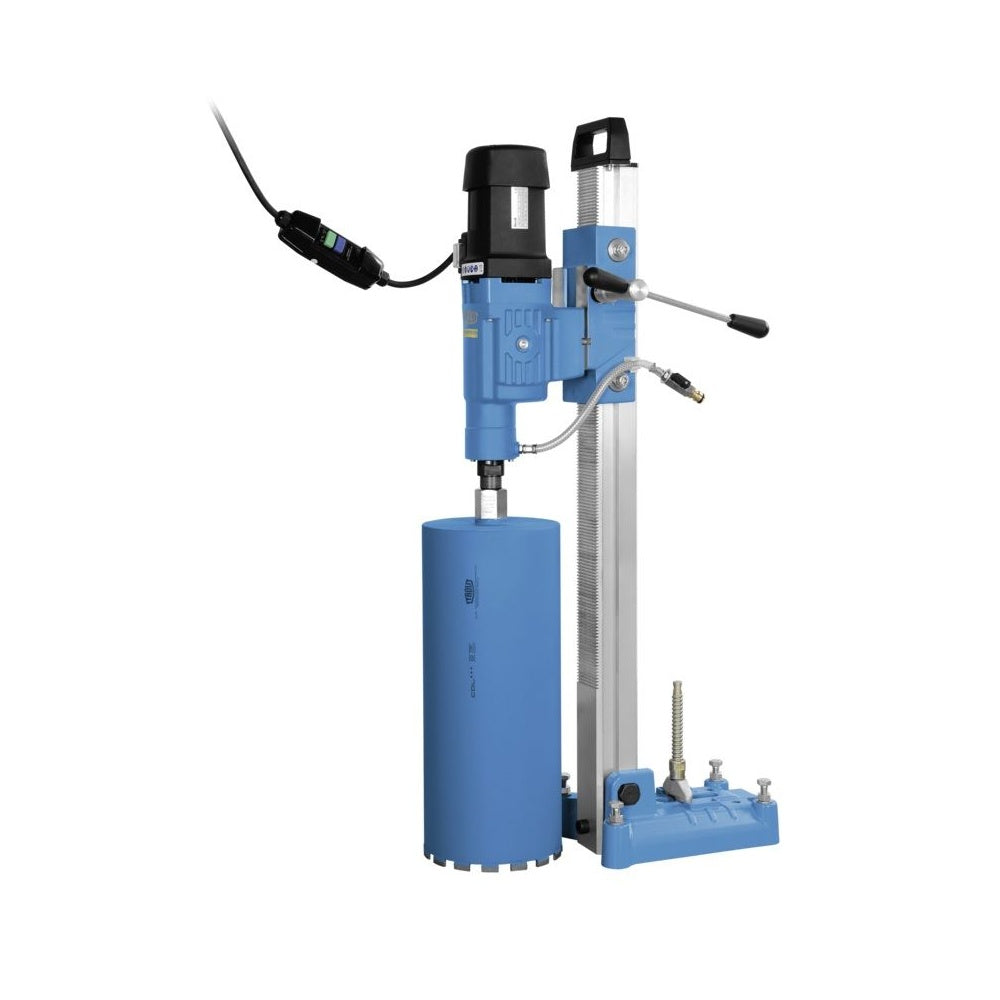

Tyrolit Core Drilling System – DRS250S/1 – 250 mm – 2.5kW

Core Drilling System – DRS250S/1 – Up to 250 mm

The Tyrolit DRS250 core drilling system is a complete integrated drilling solution designed for professional wet core drilling in concrete and reinforced concrete.

This system combines a powerful 2.5kW motor with a robust drill rig, forming a stable and compact unit. The 2-speed oil-bath gearbox ensures optimal torque-to-speed ratio across different drilling diameters.

Engineered for reliability and ease of use, the DRS250 is ideal for contractors performing structural drilling, installation work, and medium to large diameter core applications.

Integrated safety features and mechanical overload protection ensure consistent performance under demanding jobsite conditions.

Key Features

• Complete motor + drill rig system
• Drilling capacity up to 250mm
• 2-speed oil bath gearbox
• Mechanical overload clutch
• Integrated PRCD safety switch
• Stable dowel foot base fixing
• Designed for wet drilling

Technical Specifications

• Model: DRS250S/1
• Item Number: 10999880
• Maximum Drilling Diameter: 250mm
• Motor Power: 2.5kW
• Voltage: 230V
• Frequency: 50Hz
• Cooling: Air cooled
• Operation: Drill rig operation
• Application: Wet core drilling
• Tool Attachment: 1 1/4″ external thread
• Base Type: Dowel foot
• Feed Mechanism: Manual feed
• Gearbox: 2-speed oil bath

Recommended Applications

• Structural concrete drilling
• Reinforced concrete openings
• Pipe penetrations
• HVAC and MEP installations
• Medium to large diameter core applications
