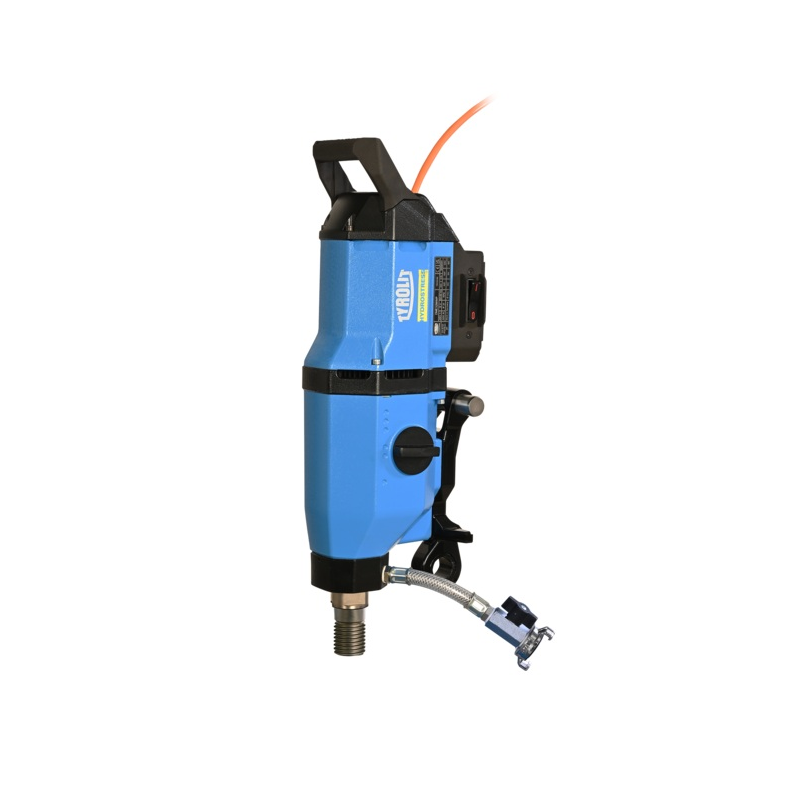

Tyrolit Core Drill Motor – DME32MW – 3.2kW – 1¼″ UNC

Core Drill Motor – DME32MW – 3.2kW – 1¼″ UNC

The Tyrolit DME32MW is a high-performance core drill motor engineered for professional wet drilling in concrete and reinforced concrete.

Designed for use with compatible drill rigs, this powerful 3.2kW motor delivers consistent torque output and reliable drilling performance across medium to large diameter applications.

Featuring a robust gearbox and durable motor housing, the DME32MW is built for demanding site conditions and continuous operation. The 1¼″ UNC spindle connection ensures compatibility with standard professional core bits.

Ideal for contractors who require flexibility to pair the motor with different drilling rigs depending on project requirements.

Key Features

• High-performance 3.2kW motor
• Designed for rig-mounted operation
• 1¼″ UNC spindle connection
• Optimized for wet drilling
• Durable housing for jobsite use
• Professional-grade torque output

Technical Specifications

• Model: DME32MW-M3
• Item Number: 11005530
• Motor Power: 3.2kW
• Voltage: 230V
• Frequency: 50–60Hz
• Cooling: Air cooled
• Operation Type: Rig-mounted
• Application: Wet core drilling
• Spindle Connection: 1¼″ UNC
• Speed Control: Multi-speed gearbox (as per configuration)

Recommended Applications

• Reinforced concrete drilling
• Structural openings
• Medium to large diameter core drilling
• Contractors requiring motor + rig flexibility
